Mapping

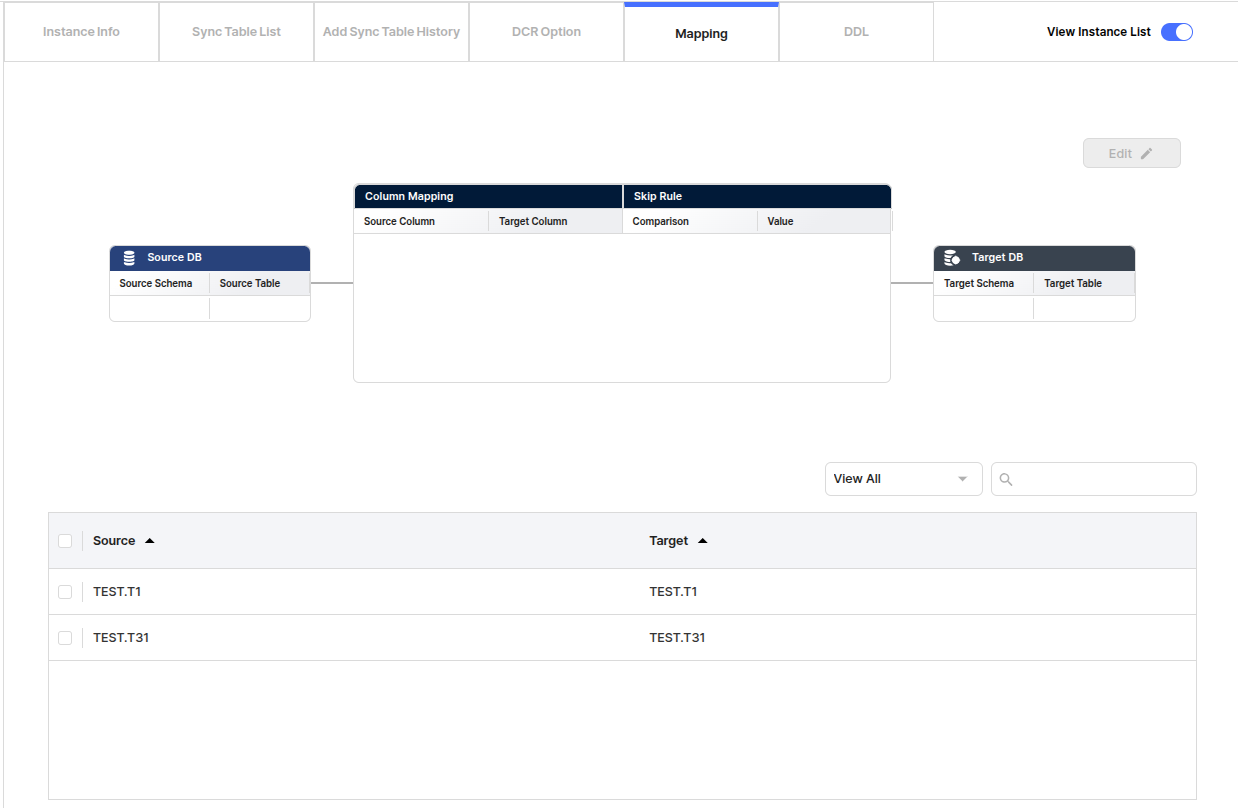

Mapping area

The users can check the Mapping Rule in the list of synchronization tables.

Mapping Rule confirmation area and Edit

• The users can view or edit the Mapping Rule applied to the table selected from the list of synchronized tables below.

• As selecting multiple tables, the users can flip through them in order.

Search

• The users can search by filtering the items the users want to search for.

Synchronization table List

• This is a list of tables registered in the synchronization table, and select the one the users want to check the detailed mapping rule.

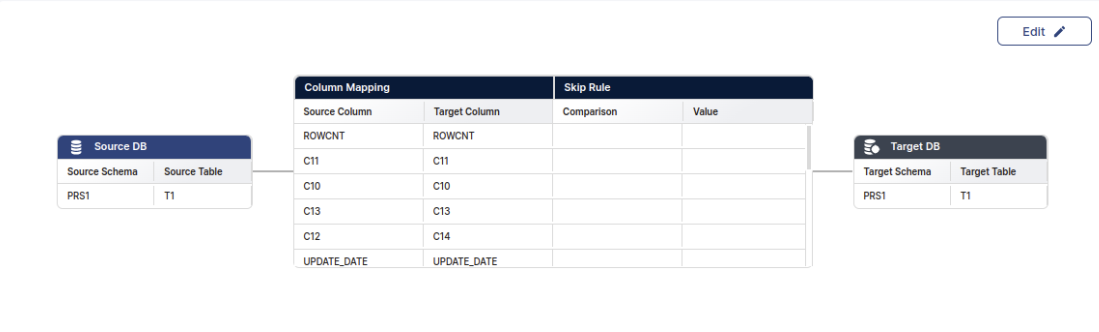

Mapping example

View the detailed Mapping Rule

The users can check the details of the Mapping Rule settings.

Item	Description
Source DB	Source Schema and Table
Column Mapping	Checks the source and target column names for which Column Mapping is set.
Skip Rule	Checks the comparison and value for which Skip Rule is set. The users can check the comparison and value for which the Skip Rule is set. They are displayed with the column name in the Column Mapping area.
Target DB	Source Schema and Table.
Edit	The users can edit the corresponding Mapping Rule based on the Source Table.

Mapping Edit

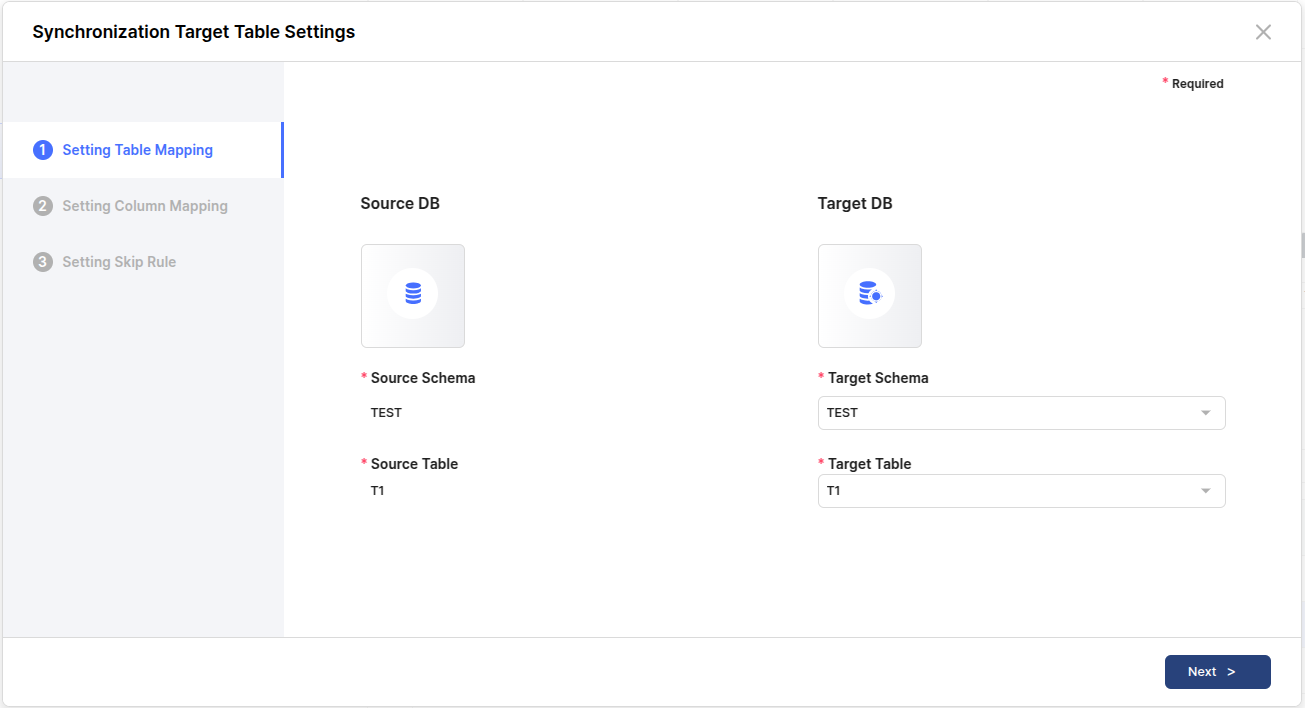

1. Setting Table Mapping

Set up a Target Schema and Table to set up a Mapping Rule based on the Source Table.

2. Setting Column Mapping

Set up Column Mapping.

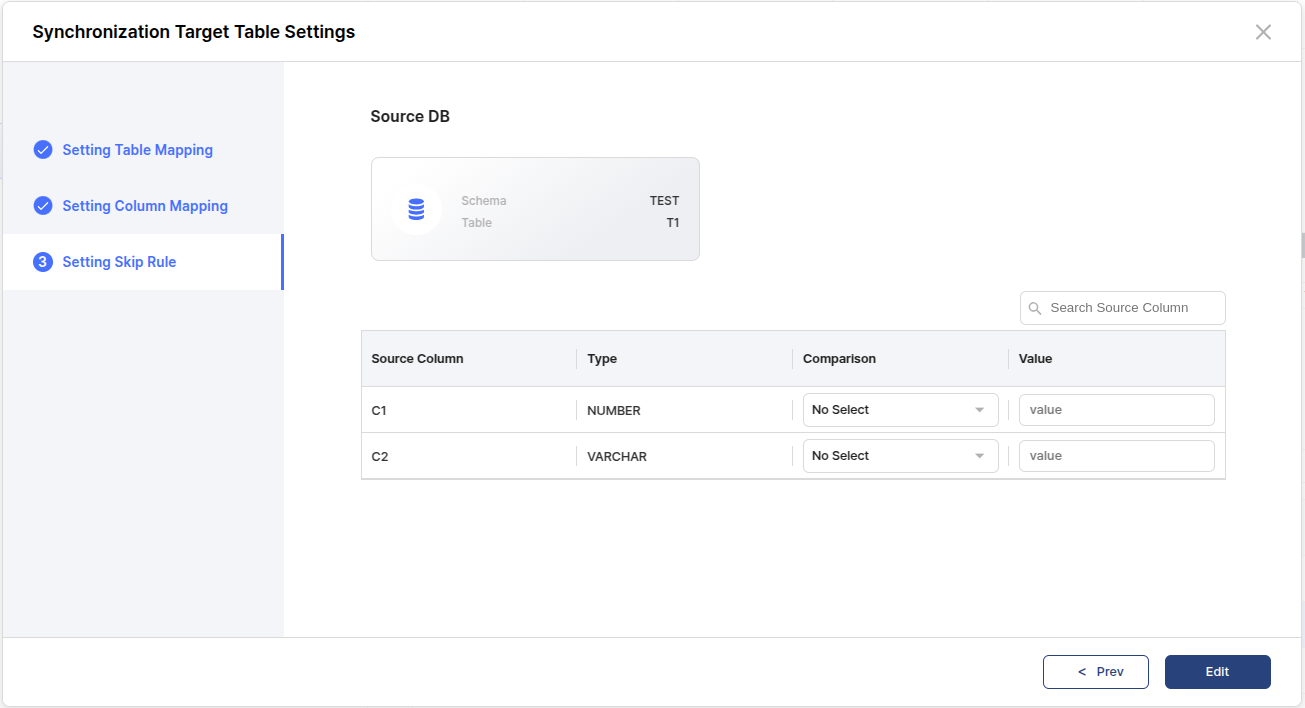

3. Setting Skip Rule

Set up Skip Rule.
