Key features

This chapter introduces the main features provided by the Schema Tree Browser.

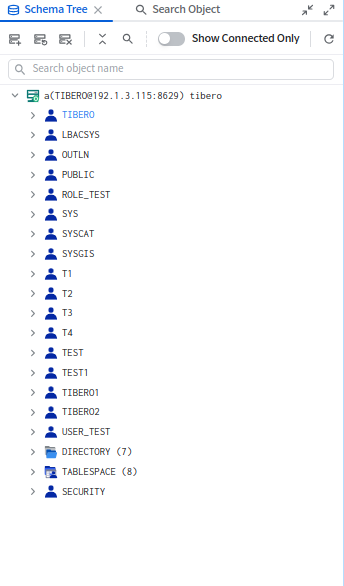

Schema Tree Browser screen

Generate SQL

Automatically generates INSERT/UPDATE/DELETE/SELECT/MERGE SQL templates for database objects (Table, View, Materialized View).

Supported objects

Use the Generate SQL feature for The following database objects.

• Table

• View

• Materialized View

Execution

1. Find the desired item (Table/View/Materialized View) in the object tree.

2. Right-click on the item to open the context menu.

3. Select 'Generate SQL' from the menu.

Table Context Menu

Generate SQL window

In the SQL window that appears when executing Generate SQL, the following information are shown.

• The names of all columns in the selected object

• SQL template for each column's data type

• Example automatically generated INSERT/UPDATE/DELETE/SELECT/MERGE statements

Window when selecting Generate SQL - INSERT type

Execution

1. Copy the generated SQL template.

2. Enter the correct value for the data type.

Search Object

Provides the search function of Schema Object.

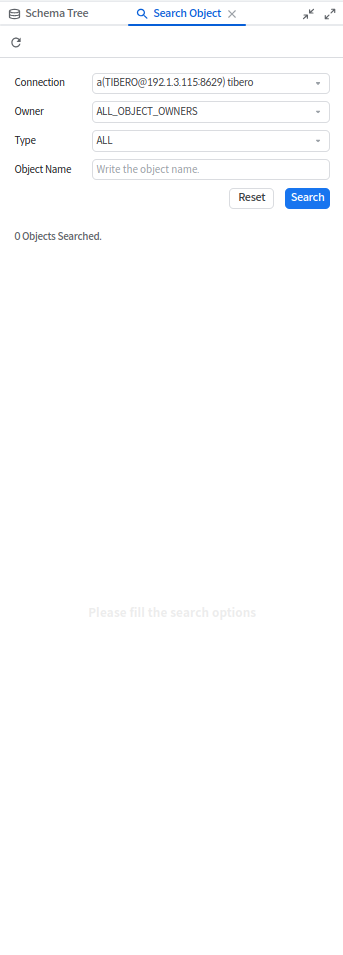

Search Object window

The user can search for a Schema Tree Object with the desired conditions by entering values such as Connection, Owner, Type, Object Name, etc.
