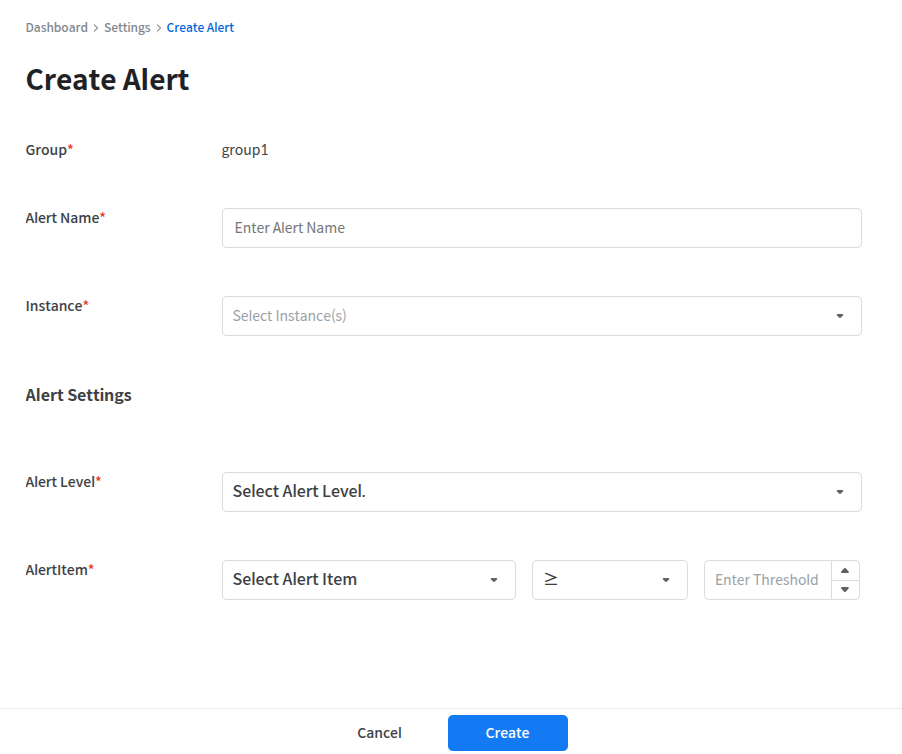

| Field | Description |
|---|---|
| Group | The group to which the alert will be applied |
| Alert Name | Name of the alert |
| Instance | Instance to which the alert applies [Note] The selected instances are displayed in 'Selected Instances'. The users can select all instances by selecting 'Select All Instances' at the top, and selecting a cluster will select all instances belonging to that cluster. |
| Alert Level | The level of the alert generated by the alert settings – INFO – WARNING – ERROR |
| Alert Item | Indicators to check for notifications [Note] Description of notification check target indicators – Disk Usage [%]: USED_MB relative to TOTAL_MB for each file system – Tablespace Usage [%]: USED_SIZE relative to TOTAL_SIZE for each tablespace – Session Usage [%]: Actual number of sessions in use at the current time relative to the total number of sessions available for allocation to users – PGA Memory (Total) [%]: PGA_USAGE relative to PGA_MAX_MEMORY for the instance – PGA Memory (Session) [%]: PGA_USED_MEM per session relative to the instance's PGA_MAX_MEMORY – For other metric information, refer to "Appendix A. Instance Monitoring Components Info" |
| Condition Check Cycle | Check cycle (seconds) for whether the notification status (condition) is met [Note] Whether the notification status (condition) is met means whether the Alert Target Item specified by the user meets the Threshold condition. |
| State Repeated Count | Number of times condition is met (Count) [Note] When checking whether the conditions set by the user are met, this refers to the number of times the condition has been met continuously. |
| To | Specify the recipients of notifications. Super admins and admin users can specify groups. Regular users can only specify themselves. |
| Specify the email address to receive the notification. Biz hour: The time zone for receiving emails. The time zone is based on the SysmasterDB time zone. If the notification occurs outside the Biz hour, emails will not be received even if a notification is generated. | |
| SSH | Command information to execute when the notification occurs SSH connection information Enter the host connection information where SSH will be executed. Host Name: Host IP address Port: Host port User Name: Host username Password: Host password Access to server over SSH: Select the SSH method for connection Command: Command to execute |
| Description | Description of the notification settings |

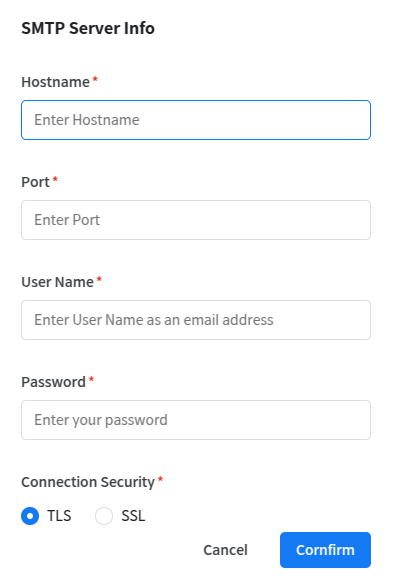

| Item | Description |
|---|---|
| Host name | SMTP server address |
| Port | SMTP server port |
| User Name | SMTP connection user ID |
| SMTP | SMTP connection user password |
| Connection Security | SMTP Security Method |
